There are so many Wi-Fi systems on the market, and this post will point you in the right direction and help you pick the best mesh for your home.
A suitable network system is more than just the performance or Wi-Fi coverage. It’s also about the cost, features, customizability, and, most importantly, your privacy.
Let’s dig in!
Dong’s note: I first published this post on Feb 21, 2024, and last updated it on December 15, 2025, to add the latest relevant information.
How to pick the best mesh Wi-Fi system: The crucial hardware rule and four critical criteria
Generally, if you buy a brand-new mesh system, you’ll get a 2-pack or 3-pack, with the hardware units identical or purposely designed to work together. There’s no need to worry about hardware compatibility.
However, if you start with a single router or a 2-pack and then want to expand the system by adding more broadcasters, remember the first hardware rule:
Avoid using hardware of different Wi-Fi standards!
For example, Wi-Fi 6 hardware generally won’t work well with the Wi-Fi 5 counterpart in a system—the two use the shared 5GHz band differently. The more standards are used together, the worse it gets—things can be unpredictable.
If you use Wi-Fi 7 hardware, it’s best to use Wi-Fi 7 throughout. In fact, if you want to use the MLO feature as the wireless backhaul link, you’ll need to use hardware units belonging to the original set (a 2-pack or a 3-pack) or, when applicable, multiple identical mesh routers. In other words, mixing hardware models alone can yield unexpected results.
After that, there are four additional things you should consider when getting a Wi-Fi system: The number of hardware units, the performance grade, the features, and the privacy.
Let’s start with the number of hardware units.
1. Number of hardware units: Wired vs. Wireless
A home Wi-Fi broadcaster emits signals outward, somewhat like a sphere. The Wi-Fi range varies greatly depending on a home’s layout, the number and type of walls, and other factors.
On the safe side, you can assume each mesh node covers about 1,500 ft2 (140 m2). After that, consider these:
- In a wireless setup (a.k.a. wireless backhaul, which is when you use Wi-Fi to link the mesh hardware units): You need to place the hardware units relatively close to each other. Specifically, the satellite unit must be within the good coverage of the primary router (or another satellite) before it can extend the signals meaningfully. But you don’t want to put it too close, either. That will reduce the total combined coverage of the two or negate the need for the second unit. Note that a mesh is not an upgrade to a single router.
- In a wired setup (a.k.a. wired backhaul, which is when you use network cables to link the mesh hardware units): The satellite doesn’t have to be within the coverage of any existing broadcaster. You can place it far enough—as far as the network cable between the two allows—so that its signals don’t overlap with the existing Wi-Fi network. As a result, you’ll get extensive coverage without signal degradation and less interference.
The gist is that wireless backhaul is convenient but doesn’t provide the best performance or flexibility. You have to find the sweat spots to place the satellite mesh hardware units from one another.
On the other hand, with wired backhauling, which requires getting your home wired with network cables, you can place a broadcaster at the exact location to deliver Wi-Fi coverage.
For example, if you have a primary residence and an outhouse that’s far apart in a large property, no wireless system can work. However, a single network cable connecting a pair of broadcasters placed in the two locations will make both well covered—you can skip the area in between.
That aside, consider the following when it comes to the number of hardware units you will need:
- If currently a single router is almost enough, then a 2-pack mesh will do.
- If currently a 2-pack of low-end hardware is barely enough, a 2-pack of higher-end or better Wi-Fi standards will be perfect.
- If you’re comfortable with a low-end 3-pack, a high-end 2-pack likely won’t cut it—you’ll need a new 3-pack set of a similar higher tier.
- If your current high-end 3-pack of an older system (Wi-Fi 5) is almost enough, a newer high-end of a better standard (Wi-Fi 6 or 7) will work out better, but you might also want to consider a 4-pack.
It’s often tricky to determine how many broadcasters are needed. The good news is that with most mesh options, you can start with a 2-pack and add more units later to scale up coverage.
2. Performance grade: Number of bands vs. Multi-Gig ports vs. needed bandwidth
Wi-Fi speed is, by far, the most critical factor in building a network. And that depends a lot on whether your home is wired with network cables.
Here are some quick bullet points based on the bandwidth you want or need:
- Gigabit or faster: Getting your home wired is generally a must.
- 150Mbps to Gigabit: Wiring is recommended, but a tri-band Wi-Fi 6 or a Wi-Fi 7 system in wireless setup will do.
- Slower than 150Mbps: Any Wi-Fi system (Wi-Fi 5 and newer) will do, wired or wireless, though it doesn’t hurt to get your home wired.
After that, the next step is to figure out the hardware suitable for the situation.
Specifically, for a wired home:
- It’s best to start with a non-Wi-Fi router and then a few access points of your favorite Wi-Fi standard. When in doubt, pick Wi-Fi 7.
- Pick hardware that doesn’t have band-splitting, namely dual-band Wi-Fi 6 and tri-band Wi-Fi 6E or Wi-Fi 7
- Wi-Fi 7 hardware with multi-Gigabit wired backhauling is the ideal option for getting the fastest performance. In this case, avoid hardware that does not have multiple Multi-Gig ports, such as the Linksys Velop Pro 7.
For a fully wireless setup: You should never count on the 6GHz band as the backhaul due to its extremely short range and terrible object penetration. After that:
- If you use Wi-Fi 6E or Wi-Fi 6 hardware, it’s generally a good idea to utilize the hardware with an additional 5GHz band—quad-band or tri-band, respectively—which can work as the dedicated backhaul link.

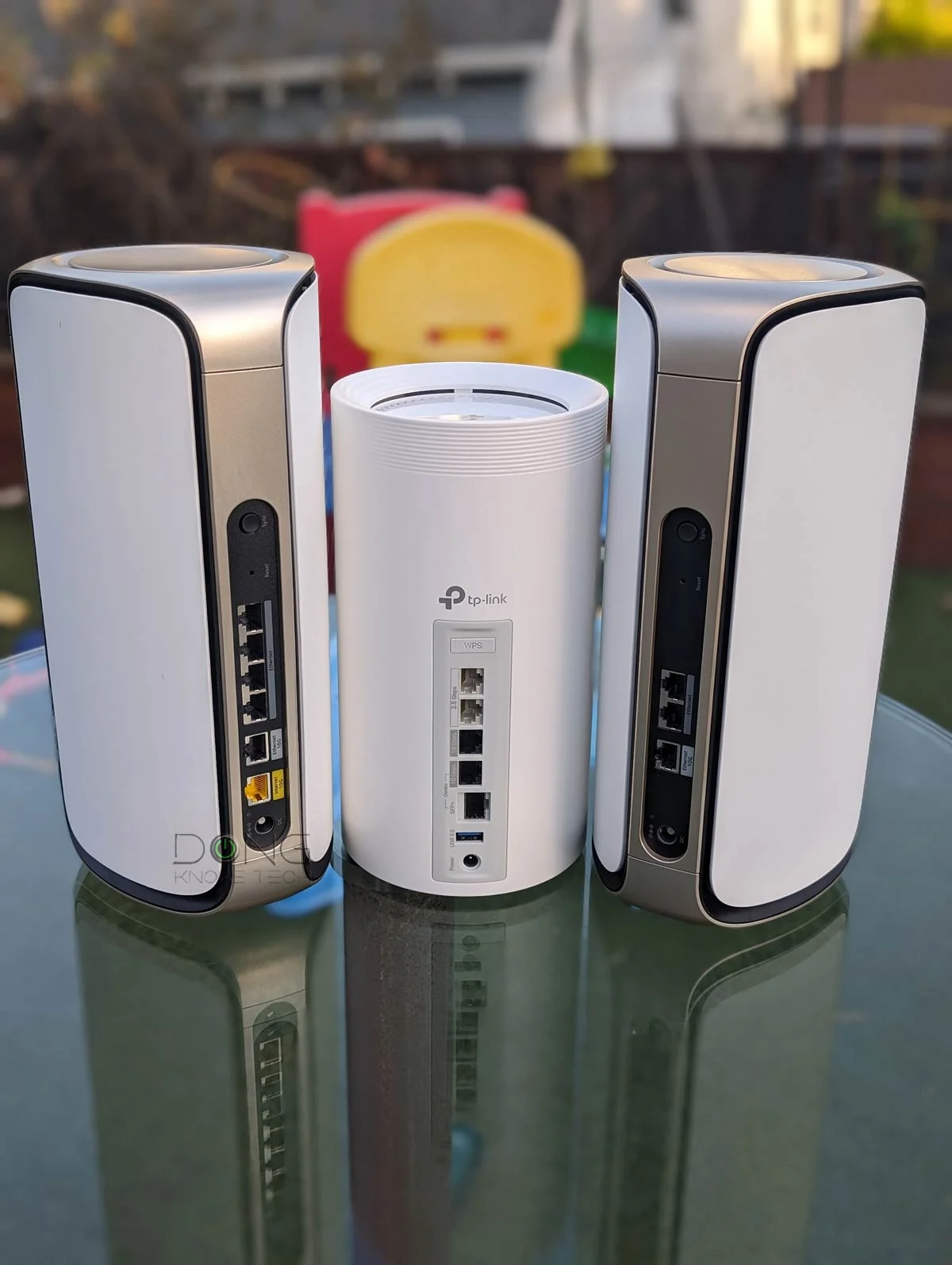

- If you decide to go with the latest Wi-Fi 7, the additional 5GHz or 6GHz band of quad-band hardware, such as the NETGEAR Orbi 970 series, generally plays little or no role other than as a marketing tool. The new standard has vastly more bandwidth, and its MLO feature can significantly improve the wireless backhaul link. Band splitting, in this case, only complicates things unnecessarily.
With that, let’s go into a bit more detail based on the needed bandwidth.
Generally, any mesh system using Wi-Fi 5 or later will do for sharing a modest Internet connection (150Mbps download speed or slower). However, if you pay for a fast Internet plan—300Mbps or higher—you’ll need a mid-tier system that has a dedicated 5GHz backhaul band or a top-tier dual-band Wi-Fi 6 (Tri-band Wi-Fi 6E) system.
If you have a high-speed internet connection (500Mbps or faster), it’s time to consider running network cables, but a top-tier tri-band Wi-Fi 6, quad-band Wi-Fi 6E, or a Wi-Fi 7 wireless mesh system can do the job.
For Gigabit or faster (multi-Gigabit) broadband, using network cables and Multi-Gig-enabled hardware is the only way to go. There’s no way around this.
That’s because even a top-tier Wi-Fi 7 system in a wireless setup won’t give you consistent Gig+ real-world rates on a good day.
Tip
Gig+, or Gig Plus, denotes a speed grade between 1Gbps and 2Gbps. So, it’s 1.5Gbps, give or take a couple of hundred megabits per second, and it’s not speedy enough to qualify as Multi-Gig Ethernet or multi-Gigabit. Intel coined the term to describe its Wi-Fi 6E client chips, the AX210 and AX211, in terms of their real-world speeds.
Gig+ primarily applies to sustained Wi-Fi 6 or Wi-Fi 7 speeds via a 2×2 at 160MHz connection, or to broadband internet speeds.
On the other hand, with wired backhauling, all you need is a modest dual-band system (Wi-Fi 6 or newer) to experience Gigabit-class bandwidth.
Ultimate mesh system: Quick notes on hardware requirements
If you want true Gigabit or higher bandwidth out of a mesh Wi-Fi system, multi-Gigabit wired backhauling is necessary. Such a mesh requires at least two Multi-Gig ports at the primary router unit and at least one Multi-Gig port at each satellite unit.
The router uses the first Multi-Gig port to host the fast WAN connection and the second to host the satellite unit in a 2-pack setup.
If more coverage than a 2-pack is needed, the router’s 2nd Multi-Gig port can host a Multi-Gig switch to increase the number of supported satellites. Alternatively, you can use satellites with two or more Multi-Gig ports and daisy-chain the units.
Entry-level Multi-Gig (2.5Gbps) wired backhauling is fast enough for mid-tier (2×2) Wi-Fi 6/6E broadcasters to deliver their bandwidth in full. If you want to enjoy the bandwidth of top-tier Wi-Fi 6/6E or Wi-Fi 7 broadcasters, 10Gbps wired backhauling is the only way.
3. Features
The feature set of a system means what you can do with your home network.
If all you want is Internet access, there’s no need to worry about the features. However, it’s always helpful to have a system that includes lots of customization and built-in online protection.
I’m not a fan of mesh systems (or routers) without a web interface since they don’t offer users complete network control.
If you want many valuable features and network settings, use one of these advanced DIY mesh approaches, especially Ubiquiti’s UniFi. The runners-up are those from ASUS, Synology, Linksys, or Netgear. Others—eero, Google Nest, ARRIS SURFboard, etc.—tend to be poor in features and customizability.
4. Privacy
All Wi-Fi systems requiring you to register a login account for setup and ongoing management can cause privacy risks.
If your network connects to the vendor at all times, a third party may at least be able to monitor what you do online. What happens behind the scenes is generally unknown, and some vendors are worse than others.
Examples of this type of Wi-Fi system that require being connected to the vendor to work are those from Google, Amazon, or TP-Link (which is subject to a potential ban in the US). These also tend to have lackluster performance, few features, and low or zero customization options.
The takeaway
No matter how hard you try, no Wi-Fi system gives you everything you want. It’s always about balancing what you need and how much you can spend.
